SANDWİCH PANELSSandwich panels to meet the requirements of any architectural project..
STEEL CONSTRUCTİONSafe Structure With Strong Profiles ..
R4 ROOF PANEL

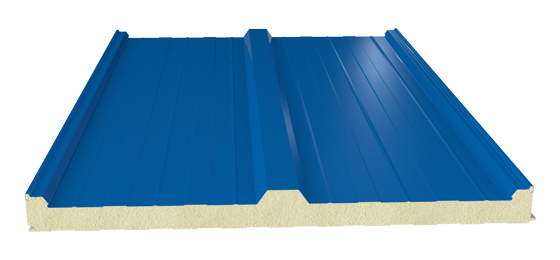

R5T CAPPED ROOF PANEL
N5 ROOF PANEL
TECHNİCAL SPECİFİCATİONS
| Production Plant |
: İskenderun |
| Favourable Width | : 1000 mm |
| Minimum Length | : 3 meters |
| Maximum Length | : Depends on Transport Conditions |
| Polyurethane Densit (EN 1602) | : 40 (±2) kg/m3 |
| Polyurethane Thickness | : 30-40-50-60-80 mm |
| Thermal Conductivity (EN 13165) | : 0,022-0,024 W/mK |
| Dimensional Stability (EN 13165) | : Level DS(TH) 11 |
| Reaction to Fire (EN 13501) | : B. S2 . d0 |
| Water Absorption (EN ISO 354) | : By Volume %2 (168 hours) |
| Closed Cell Percentage (EN 14509) | %95 |
| Vapour Diffusion Resistance (EN 12086) | 30-100 |
| Heat Resistance | -200 /+110 ºC |
PREVİEW

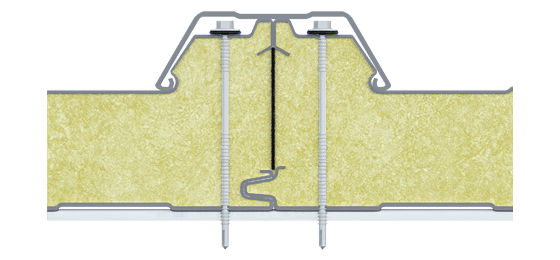

It is the first, single and real capped sandwich panel produced in Turkey. The greatest advantage of the R5 capped panel is that the panel link elements are protected from external factors thanks to the cap profile that covers the panel connection points and the prevention of the water leakage problems that can be experienced over time in connecting components. Also the ability to make the cap profiles in different colors by preference provides an advantage for appearance. By using the R5 panels, roofs with a 5% gradient can be built; while the ability to cover the connecting components makes them usable for façade paneling.
 |
Review Product Information |
